SEL Series

Overview

FOR HARSH ENVIRONMENTS

SEL Series rack and pinion permanent elevators are suitable for outdoor and indoor use. Constructed to meet any height requirement, SEL Series industrial lifts provide safe and efficient vertical transportation of persons, tools and equipment. Payloads range from 1 000 lb (450 kg) to 4 000 lb (1 815 kg) and lifting speed can reach 300 feet (90 meters) per minute. Customized car sizes and payloads are available upon request.

Cars are delivered with flexible wall ties and adjustable turnbuckles system. All SEL Series permanent elevators are built with common electrical and mechanical components easily available from local suppliers. Other features include:

  • variable frequency converter integrated
  • relay based control system; no PLC

If required, the SEL Series permanent elevators can conform to explosion proof requirements and regulation.

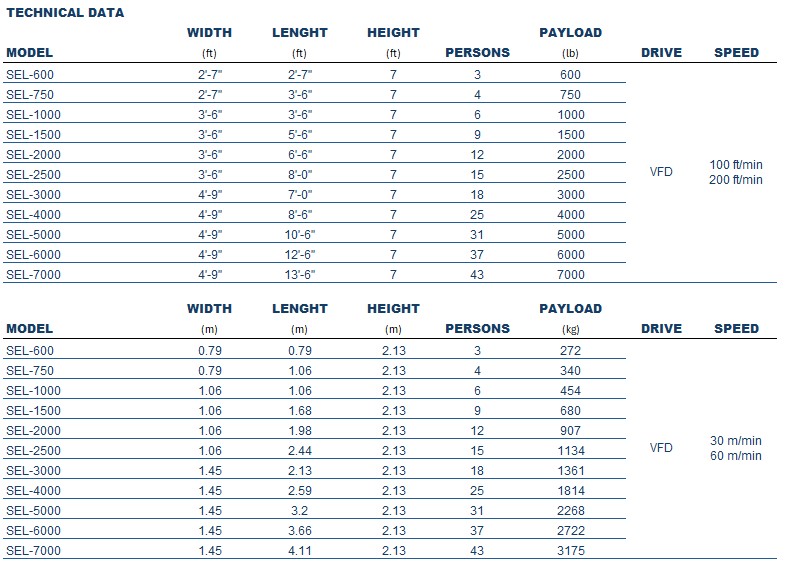

Technical data

Model :
SEL-4000
SEL-4000
Units :
Standard car length
Depending of specifications
Payload
2 720 kg
Number of persons
15
Lifting speed (Normal / Medium / High)
40 m / 60 m / 90 m
Maximum height
400 m
Standard distance between anchors
6 m
Lifting system
Rack and pinion (module 8)
Type of engine
Electrical motors (3 Phase 480 V / 60 Hz)
Internal car dimensions (L x W x H)
Depending of specifications
Mast section dimension (L x W x H)
0,45 m x 0,45 m x 1,49 m
Type of operation
Single automatic; selective / collective
Standard compliance
ANSI A17.1-2007; EN81

Your needs

We use ingenuity to create customized solutions.
Request a quote
Request a quote
Port-Daniel, QC, Canada, 2017

SEL Series

McInnis cement Plant

Fraco was commissioned to manufacture and install two SEL Series permanent elevators to provide access to clinker and cement storage silos.
